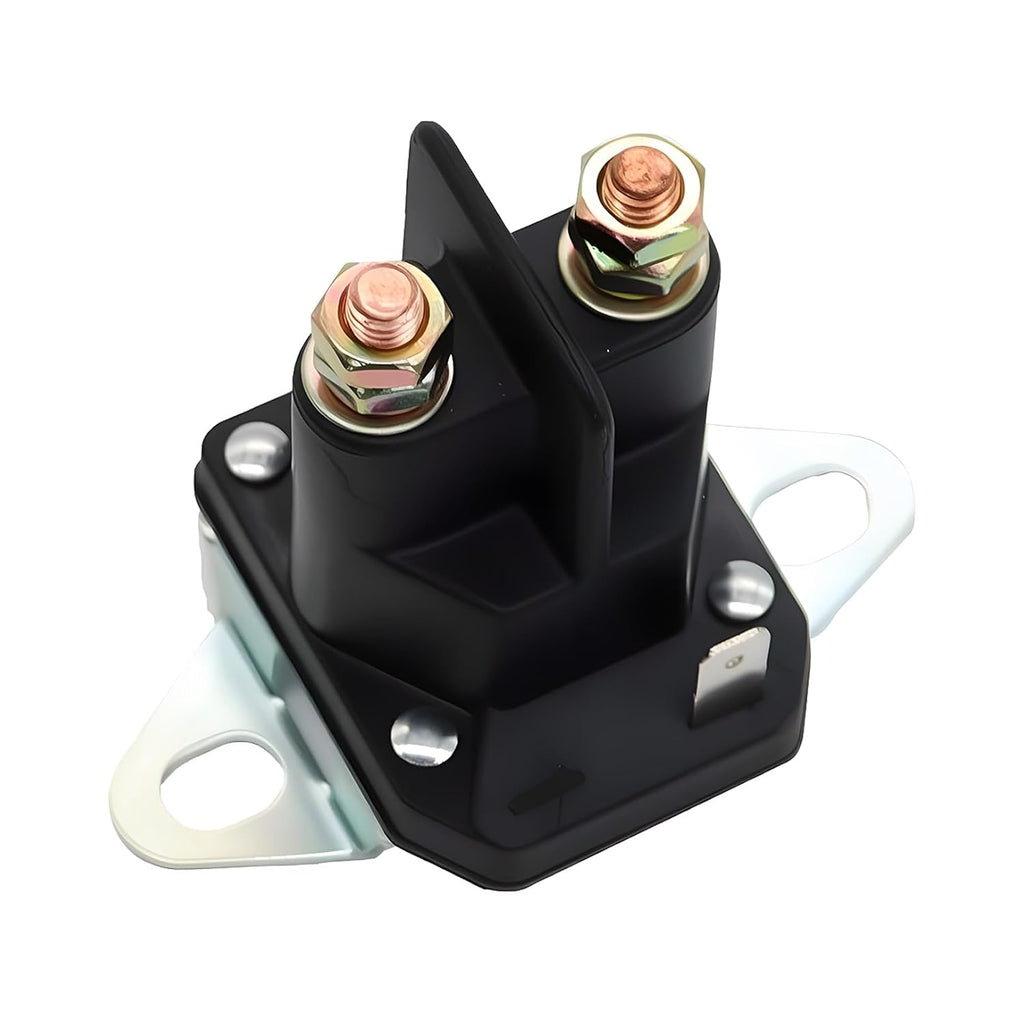

12V Three-Terminal Starter Solenoid Relay

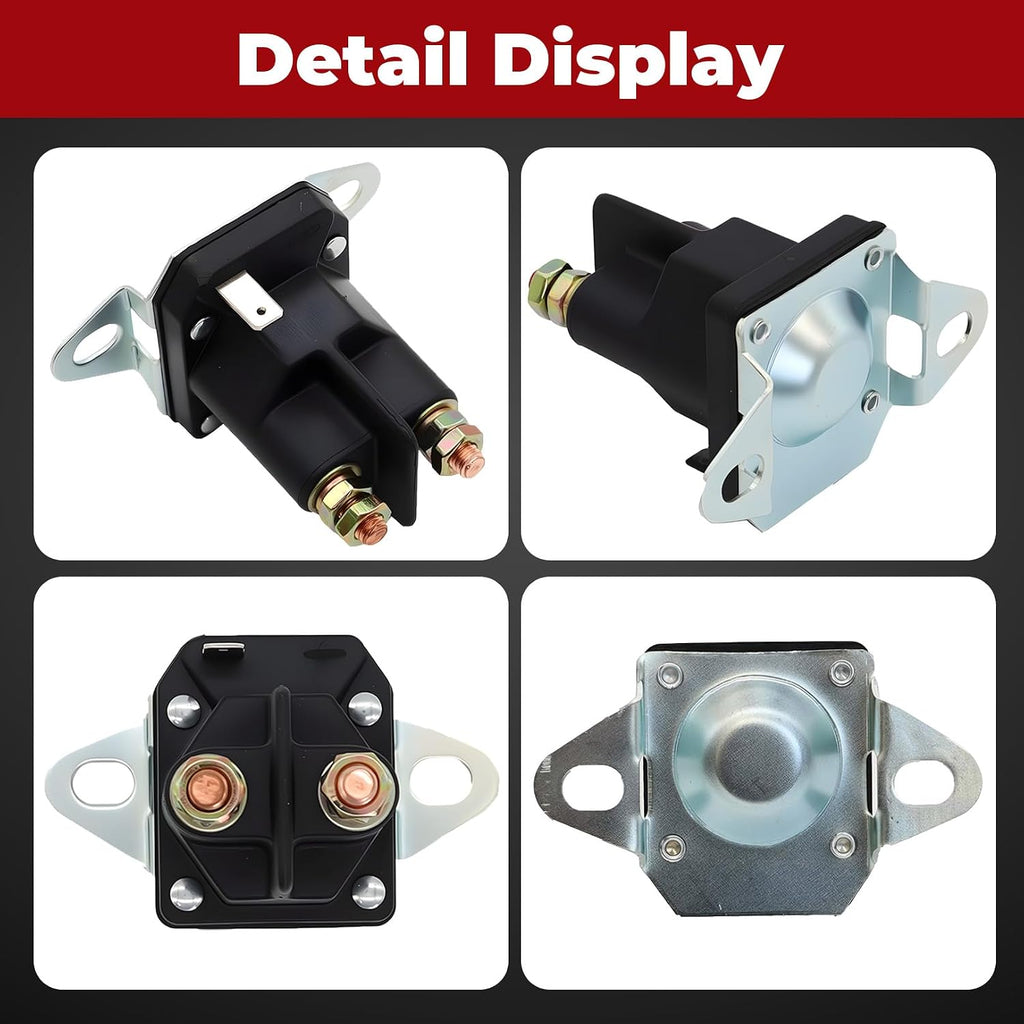

This 12V starter solenoid relay has a three-terminal layout, copper contacts and a plastic housing. It is intended as a replacement for a matching starter-circuit solenoid on compatible outdoor power equipment.

Specifications

• Rated system voltage: 12V.
• Terminal count: 3.
• Housing material: plastic.
• Contact material: copper.

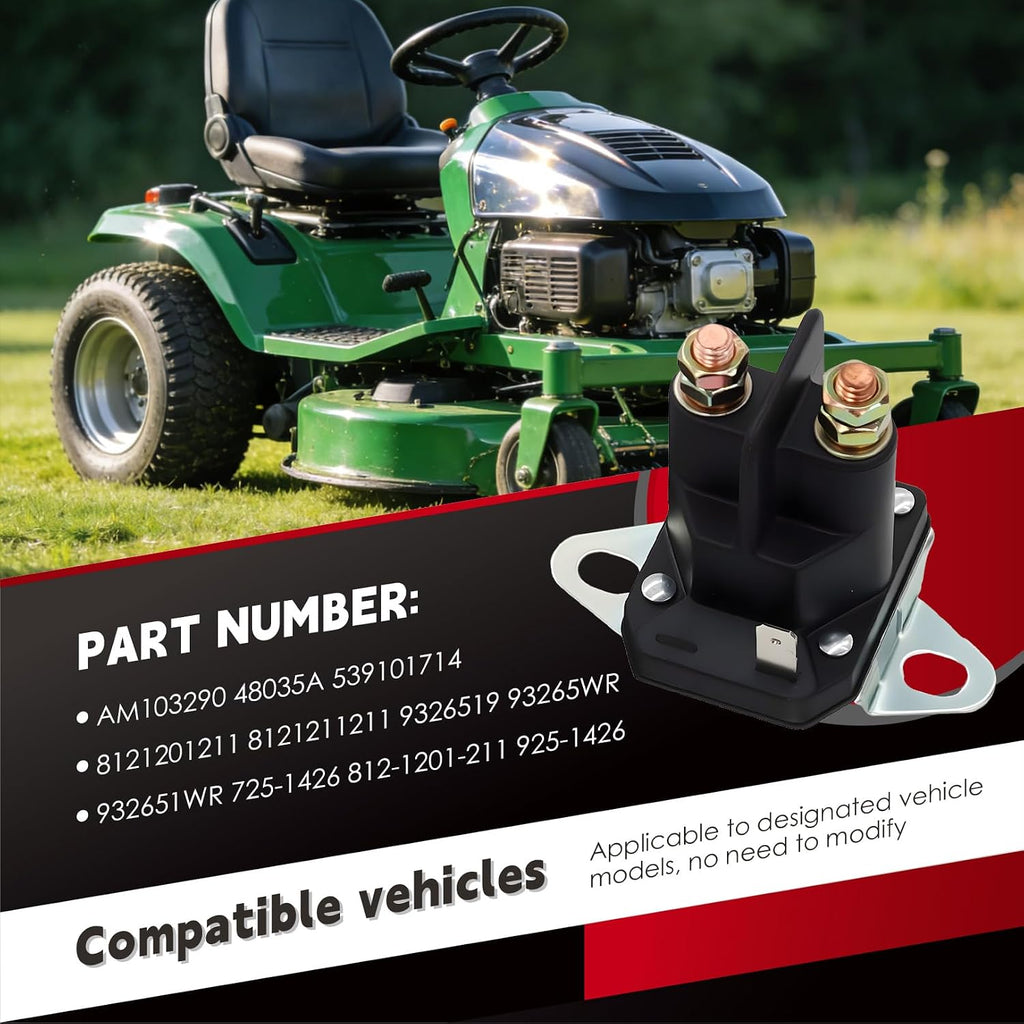

Compatibility

Compare the original relay's terminal count, terminal arrangement, mounting bracket and grounding requirements before ordering. A matching voltage alone does not establish compatibility. This three-terminal design is not a universal replacement for a four-terminal solenoid.

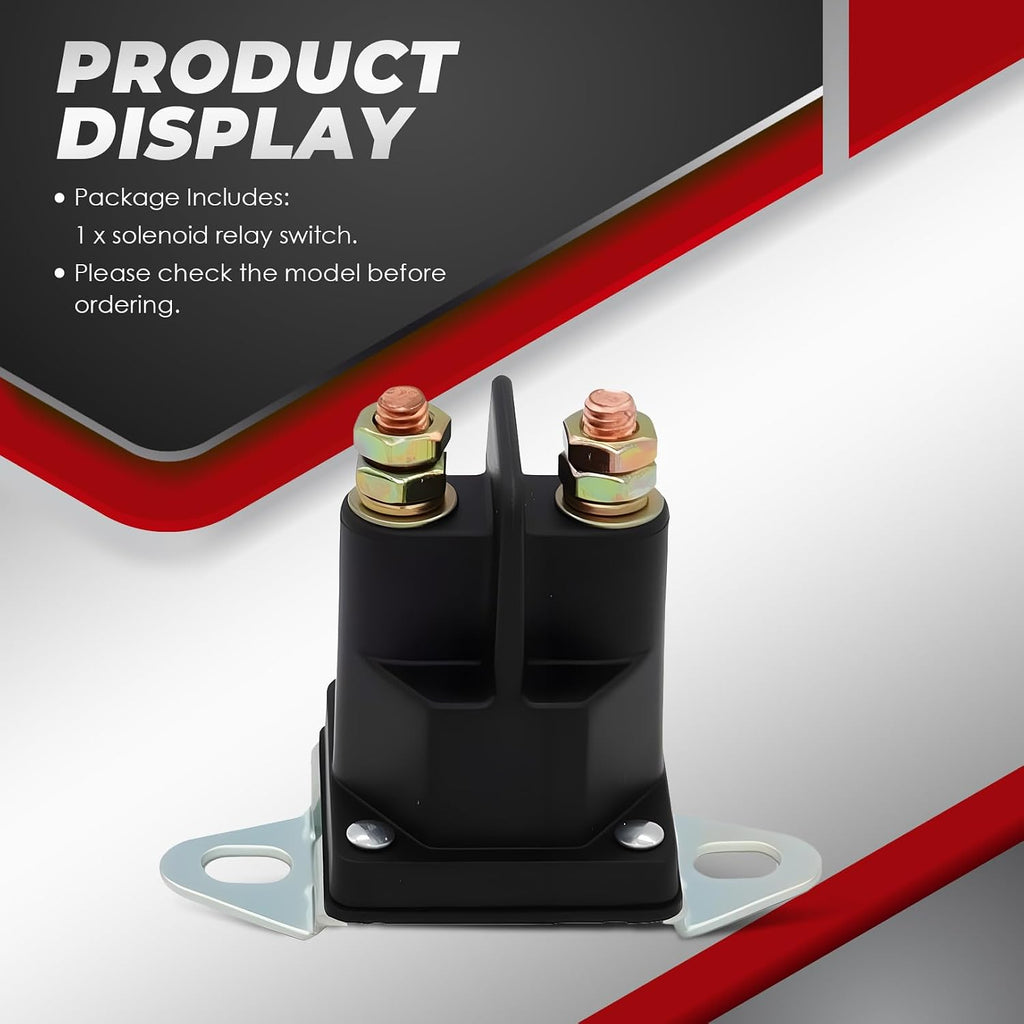

Package Contents

1 starter solenoid relay.

Installation

Switch off the equipment and disconnect the battery according to its service manual before working on the starter circuit. Identify each connection using the equipment's wiring diagram rather than terminal appearance alone. Use a qualified technician if you are unfamiliar with electrical repairs.
